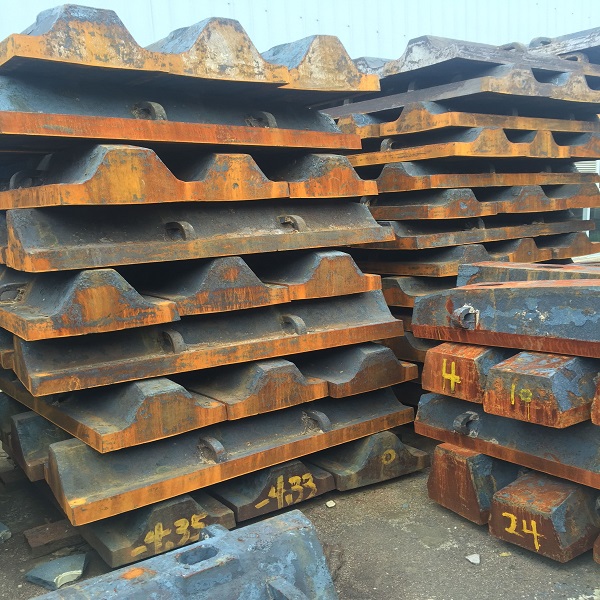

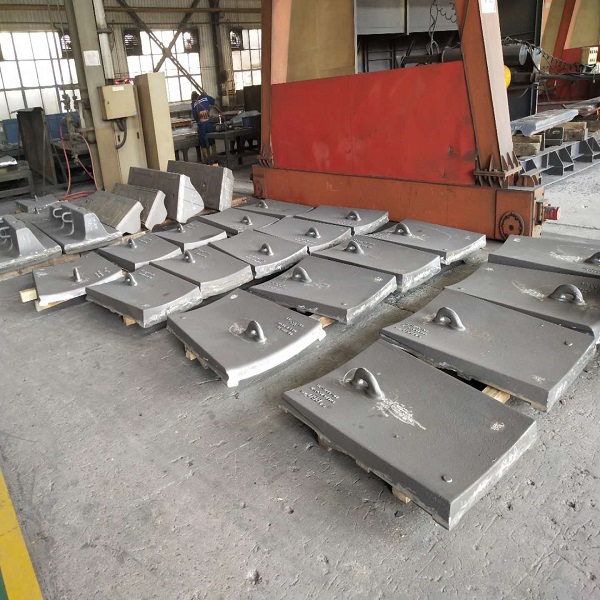

SAG L2C L2B CRMO mill liner for Gold / Iron Mining

SAG liner From H&G use Cr-Mo materials (AS2074 Standard) , provides superior impact and wear resistance in all semi-autogenous milling applications.







3.Maximum grinding media diameter (mm)



Spec Available

Code	Chemical Elements（%）
	C	Si	Mn	Cr	Mo	Cu	P	S
P1	0.6-0.9	0.4-0.7	0.6-1.0	1.8-2.1	0.2-0.4	0.3-0.5	≤0.04	≤0.06
M1	0.3-0.45	0.4-0.7	1.3-1.6	2.5-3.2	0.6-0.8	0.3-0.5	≤0.04	≤0.06



Physical Property & Microstructure

Code	Hardness（HB）	Ak（J/cm2）	Microstructure
P1	325-375	≥50	P
M1	350-400	≥75	M
M-Martensite,C-Carbide,A-Austenite,P-Pearlite

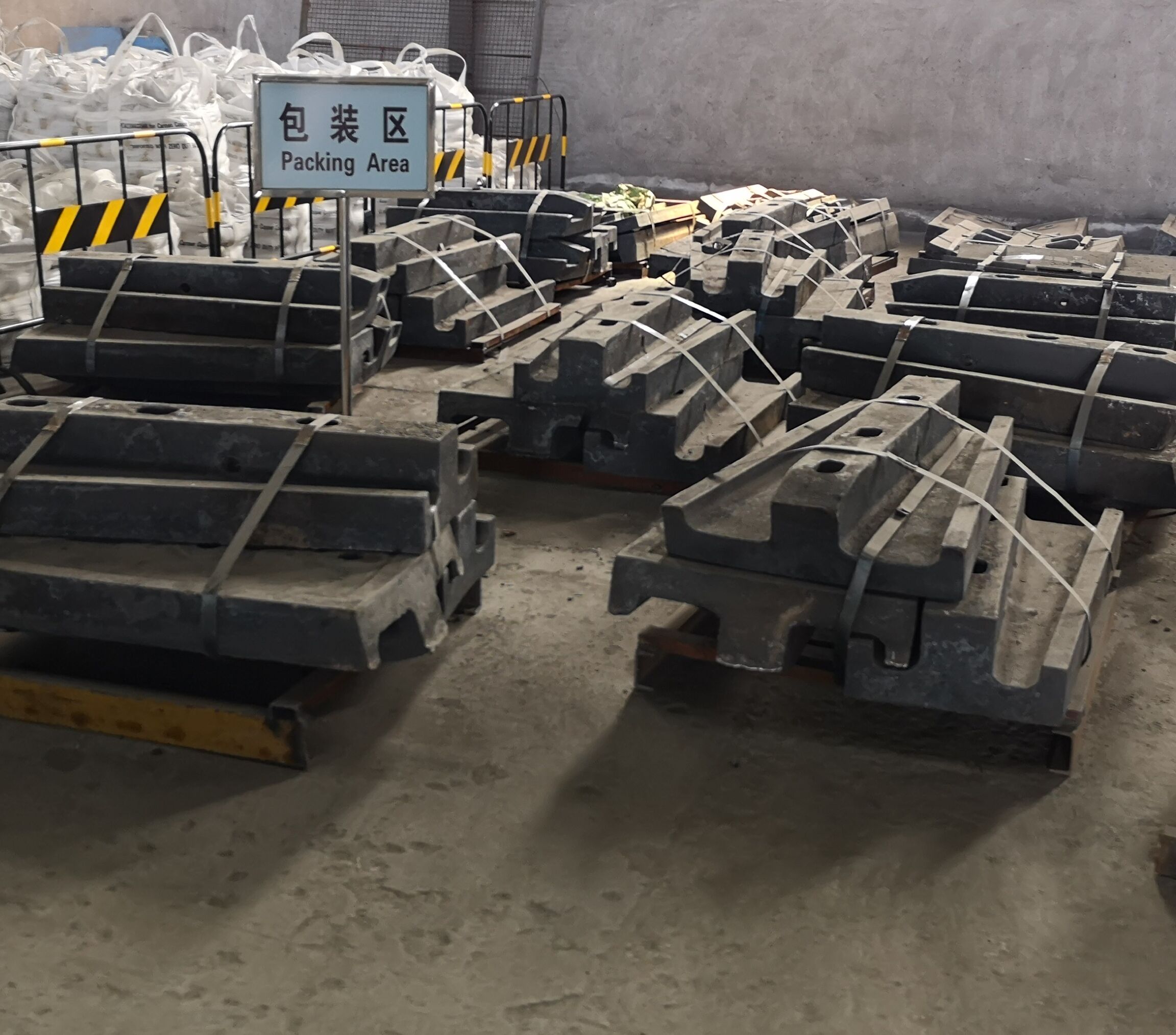

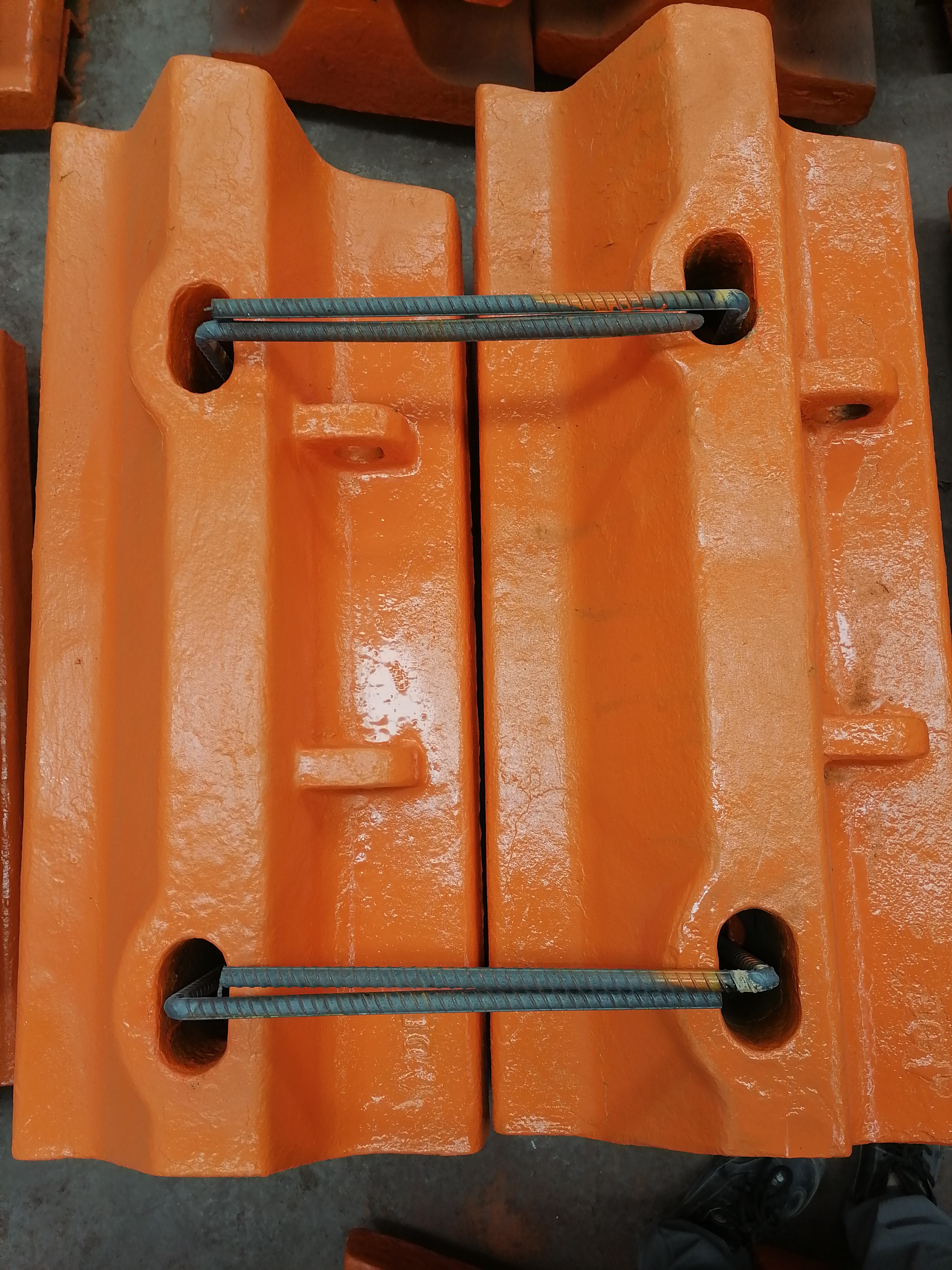

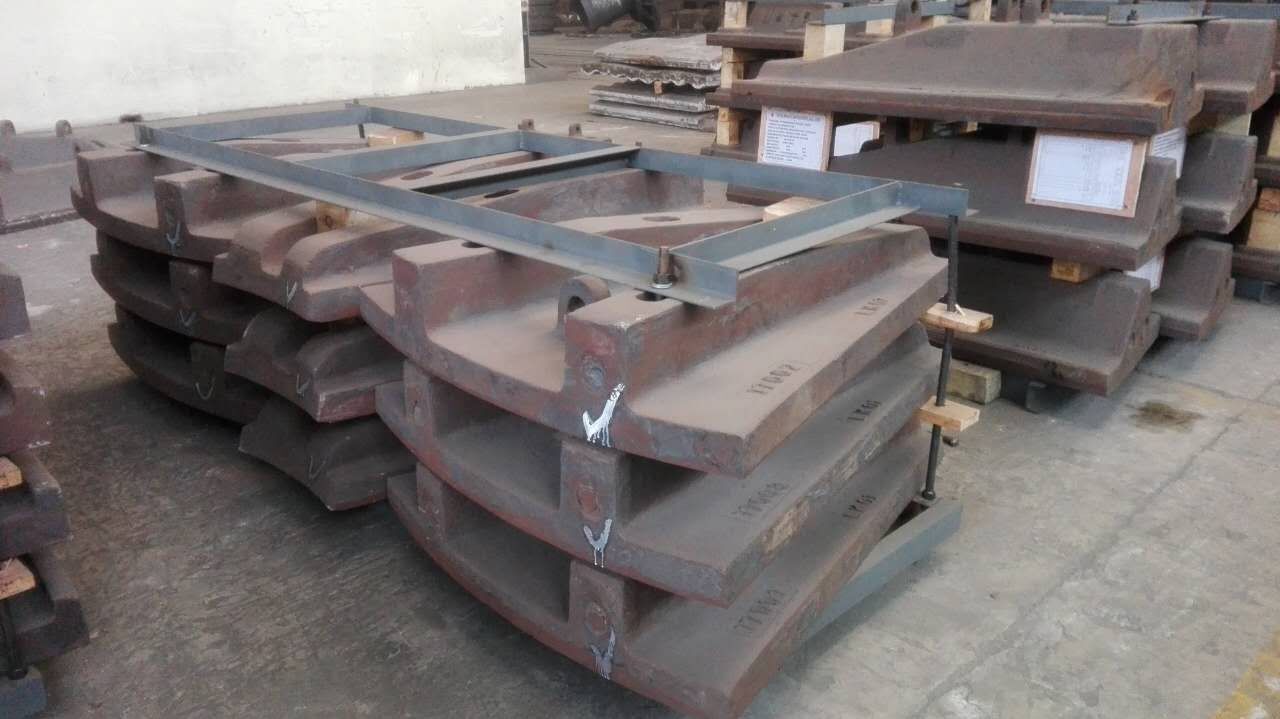

Product Package of SAG Mill Liner

Steel Pallet，Wooden Pallet and Wooden Box and Customized according to special packing requirement

Application of SAG Mill Liner

Our SAG Mill Liner are widely used in the grinding stage for mining industry, cement industry, thermal power plant, paper-making and chemical industry etc.

Semi-autogenous mills or SAG mills, as they are often called, can accomplish the same size reduction work as two or three stages of crushing and screening. Often used in grinding at modern mineral processing plants, SAG mills reduce the material directly to the desired final size or prepare it for the following grinding stages.

Lower lifetime cost

The range of mill sizes and versatile applications allow SAG milling to be accomplished with fewer lines than conventional set-ups. This, in turn, contributes to lower capital and maintenance costs for a SAG mill circuit.

Versatile applications

SAG milling extends itself to many applications due to the range of mill sizes available. They can accomplish the same size reduction work as two or three stages of crushing and screening, a rod mill and some or all of the work done by a ball mill.

SAG mills are also an optimum solution for wet grinding since crushing and screening in these cases can be difficult, if not impossible.

Efficiency through automatic operation

Metso’s process engineers will assist you in creating an efficient software-driven process, from circuit design to start-up and optimization, to ensure you get your desired grinding results.

Through automatic operation it is possible to save power, grinding media, and linear wear, while increasing capacity.
