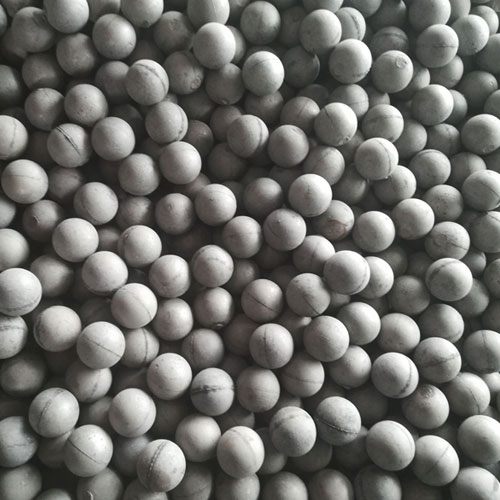

Low Chrome Alloyed Grinding Balls

Products Description

H&G is the supplier offering the full range of grinding balls in particular and grinding media in general: cast and forged, low and high chromium, balls/boulpebs/rods and grinding beads and balls.

In mineral processing Industry, we deal with various natural ores through mills :
Iron Platinum Gold	Copper Bauxite Lead – Zinc	Rock phosphate Metal slag Coal

Processing Technique

Intermediate frequency furnace smelting high-quality steel scrap and mix chromium based on requirement.

Constant temperature casting process ensuring the quality, no solid nonmetallic impurity, no pore, no mal-roundness etc. Annealing process changing the internal organizational structure, lowering the breakage, and improving the performance.

After the Pre-furnace test, semi-finished products and finished products inspection was done by advanced spectrometer and durometer imported from Germany.

Chemical Elements

Name

Chemical Elements (%)

Low Cr Balls

2.1-3.6

≤1.5

0.3-1.5

1-6

0-1.0

0-0.8

≤0.1

Physical Property & Microstructure

Name	HRC	Ak(J/cm2)	Microstructure	Times of Falling Balls
Low Cr Balls	≥46	≥2.5	P+C	≥10000
P-Pearlite C-Carbide

Size & Weight

Size(mm)	Weight(kg/pc)	Quantity(pc/t)	Size(mm)	Weight(kg/pc)	Quantity(pc/t)
Φ30	0.11	9091	Φ90	2.90	345
Φ40	0.25	3891	Φ100	4.00	250
Φ50	0.50	2000	Φ110	5.30	188
Φ60	0.86	1153	Φ120	6.80	147
Φ70	1.37	729	Φ130	7.70	129
Φ80	2.05	487	Φ140	8.74	114

Note: Any need to adjust the chemical elements, or add alloying element, it would be agreed with contract.
